Introduction of a tension load

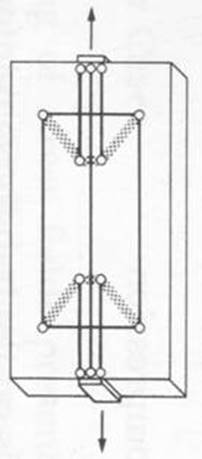

Let us now study the behavior of a concrete element subjected to the local introduction of tensile forces. The figure below shows the corresponding strut-and-tie model, which is more complex than that for compression and requires the presence of longitudinal reinforcement (to resist the tensile force) and transverse reinforcement (to distribute the force across the width of the element).

The applet below shows a reinforced concrete tie with three vertical reinforcement bars extending from one end to the other of the element, as well as two transverse bars placed at different heights.


SIMULATION



MECHANICAL MODEL

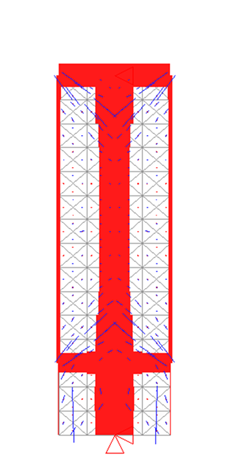

Stresses calculated by jconc


This is an image showing the stresses
because you are not connected or your browser
does not allow the jconc applet to be displayed



Struts-and-ties
