Shear wall with two point loads
Geometry and loads
We are considering a deep simply supported beam, subjected to two symmetrical point loads. The structural behaviour is described by stress fields.

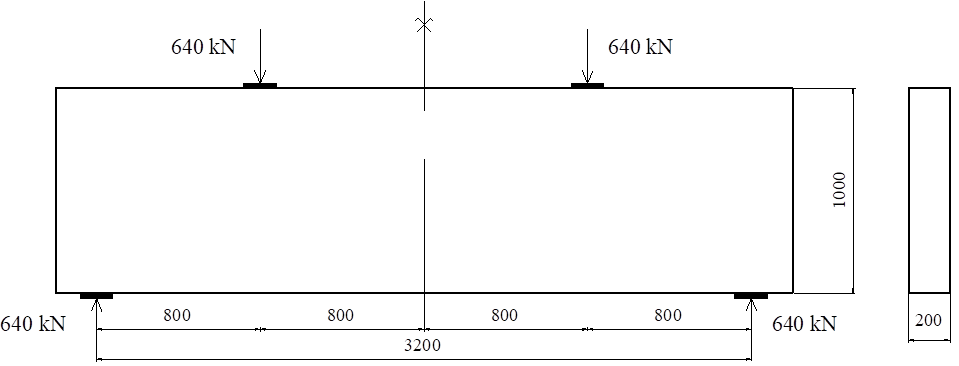

The dimensions of the beam and the load are given in the following figure:
 |
Geometry and loads
