Load introduction at the top of the wall

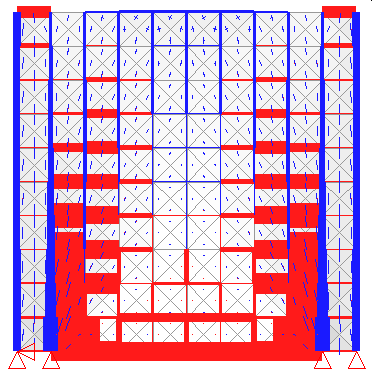

Numerical simulation of the behaviour This is an image showing the stresses because you are not connected or your browser does not allow the applet to display.

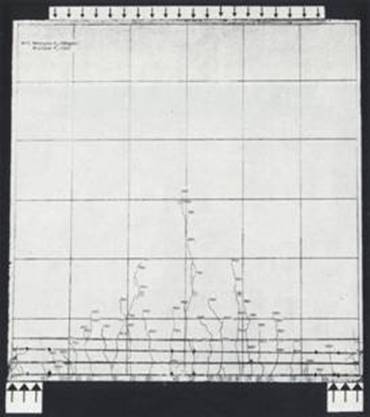

Cracking at the end of the test

Test parameters:

• Concrete: f_c = 34 MPa

• Steel: f_y = 428 MPa

• E_s = 210'000 MPa

• Mode of failure: Concrete failure under the support at a stress of 40 MPa

• Ultimate load: 1.2 MN
