Load introduction at the bottom of the wall

< This is an image showing the stresses because you are not connected or your browser does not allow the applet to display.

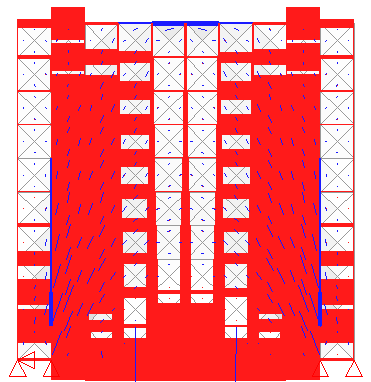

center>Numarical simulation of the behaviour	Cracking at the end of the test

Test parameters:

• Concrete: f_c = 36 MPa

• Steel: f_y = 428 MPa

• E = 210'000 MPa

• Failure mode: Concrete failure in compression close to the right support

• Ultimate load: 1.1 MN
